Combine Physical and Virtual Appliances in a Private Cloud

Combine Physical and Virtual Appliances in a Private Cloud

Central IT department of the government of Genovia is building a new private cloud which will consolidate workloads currently being run at satellite data centers throughout various ministries.

The new private cloud should offer centralized security, quick application deployment capabilities, and easy integration of existing application stacks that are using a variety of firewalls and load balancers from numerous vendors.

The document describes a summary of design challenges sent by readers of ipSpace.net blog and discussed in numerous ExpertExpress engagements. It’s based on real-life queries and network designs but does not represent an actual customer network. Complete document is available as downloadable PDF to ipSpace.net subscribers. You can also buy a digital book with all ExpertExpress case studies



Existing Network Services Design

All current data centers (run by the central IT department and various ministries) use traditional approaches to network services deployment (see Figure 1):

  • A pair of central firewalls and load balancers;
  • Small number of security zones implemented with VLAN-based subnets;
  • Security zones shared by multiple applications.

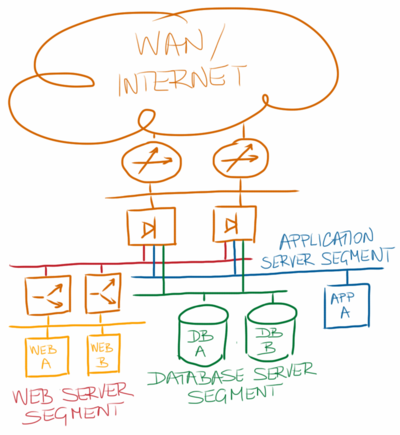

Figure 1: Centralized network services implemented with physical appliances

The central IT department provides Internet connectivity to the whole government; other data centers connect to the private WAN network as shown in Figure 2.

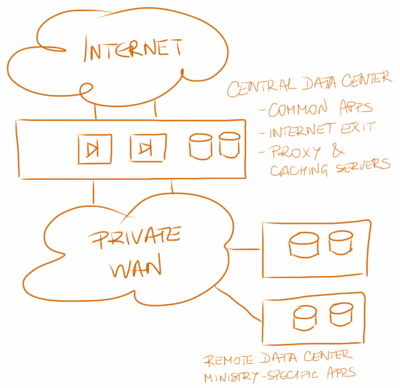

Figure 2: Centralized network services implemented with physical appliances

Security Requirements

Applications run within the existing data centers have highly varying security requirements. Most of them need some sort of network-layer protection; some of them require deep packet inspection or application-level firewalls that have been implemented with products from numerous vendors (each ministry or department used to have its own purchasing processes).

Most application stacks rely on data stored in internal databases or in the central database server (resident in the central data center); some applications need access to third-party data reachable over the Internet or tightly-controlled extranet connected to the private WAN network (see Figure 3).

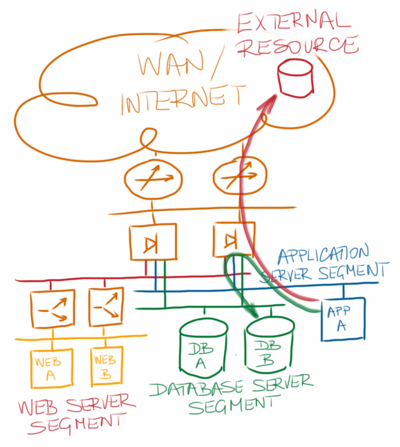

Figure 3: Applications accessing external resources

Migrating the high-security applications into the security zones that have already been established within the central data center is obviously out of question – some of these applications are not allowed to coexist in the same security zone with any other workload. The number of security zones in the consolidated data center will thus drastically increase, more so if the cloud architects decide to make each application an independent tenant with its own set of security zones.[1]

Private Cloud Infrastructure

The consolidated private cloud infrastructure will be implemented with the minimum possible variability of the physical hardware to minimize the hardware maintenance costs, effectively implementing the cloud-as-an-appliance design[2].

For more details, please read the Designing a Private Cloud Network Infrastructure case study.

The cloud architecture team decided to virtualize the whole infrastructure, including large bare-metal servers, which will be implemented as a single VM running on a dedicated physical server, and network services appliances, which will be implemented with open-source or commercial products in VM format.

There’s More

The rest of the case study covers these following topics:

  • Network Services Implementation Options
  • Network Tapping and IDS
  • Load Balancing
  • Network-Level Firewalls
  • Deep Packet Inspection and Application-Level Firewalls
  • SSL and VPN Termination
  • The Reality Intervenes

Notes

  1. Make every application an independent tenant
    http://blog.ipspace.net/2013/11/make-every-application-independent.html
  2. Cloud-as-an-Appliance design
    http://blog.ipspace.net/2013/07/cloud-as-appliance-design.html

Get the complete document

Complete case study, including design and deployment guidelines and sample configuration snippets is available to ipSpace.net subscribers. Select the Case studies tab after logging into the webinar management system.

You can also buy a digital book with all ExpertExpress case studies.
